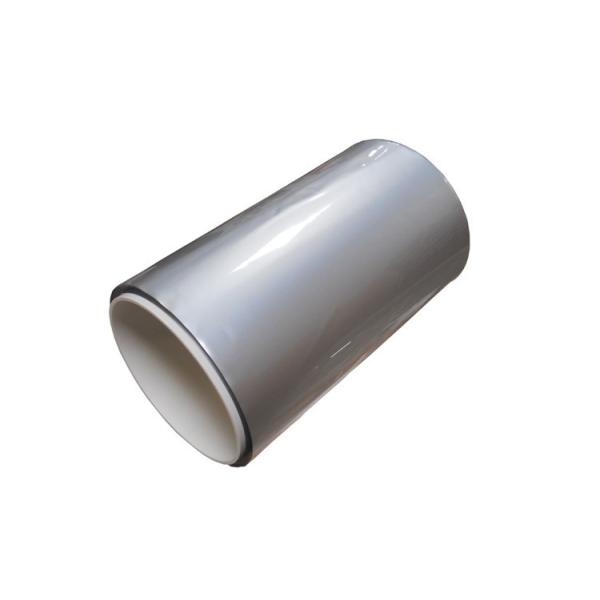

Mat Finish Aluminum Laminated Film For Pouch Cell Case

Product Categories

Shenzhen Meirui Zhida Technology Co., Ltd.

Contact Now

Name: Mat Finish Aluminum Laminated Film For Pouch Cell Case
Brand: MRBEST
Price: 1 USD

Brand Name : MRBEST

Model Number : ALF40025

Place of Origin : China

MOQ : 100 Sets

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 5000000 sets per month

Delivery Time : 3-15 working days

Packaging Details : Standard Export Carton Packing

Name : Aluminum Laminated Film for Pouch Cell Case

Thickness : 115μm±5%

Width : 400mm

Length : 25m

Surface quality : Mat finish

Molding Depth : < 8.0mm

Contact Now

Aluminum Laminated Film for Pouch Cell Case, 400mm W x 25 m L x 0.115 mm T

Mat Finish Aluminum Laminated Film For Pouch Cell Case

This aluminum laminated film (115 um ) is used as a casing material for the polymer Li-Ion battery.

Specifications

Layers from outside (Shiny) to the inside (Mat)	Polyamide (JIS Z1714): 0.025mm (+-0.0025mm) ( Melting point: ~223ºC) Adhesive (Polyester-polyurethane): 4-5 g/m2 (Melting point: 150ºC ) Aluminum foil (JIS A8079,A8021): 0.040mm (+-0.004mm) (Inside) (Melting Point: ~660ºC) Adhesive (Urethane-free Adhesive): 2-3 g/m2 (Melting Point: ~100ºC) Polypropylene: 0.040mm (+-0.004mm) (Melting Point: ~130ºC)
Thickness:	115μm±5%
Width	400mm
Length	25 meter
Surface quality	Mat finish
Fish Eye	2mm or less in diameter (clear),1mm or less in diameter (colored)
Molding Depth	< 8.0mm
Electrical Insulating	Good
Hot Sealing Condition	180-190°C
Moisture Vapor / O2 Transmission Rate	200ppm / 5 years
Laminate Strength	Nylon/Al more than 2N/15mm Al/CPP more than 5N/15mm
Heat Seal Strength	More than 22.5N/15mm wide at 200℃ x 0.2Mpa x2 sec by MRBEST's heat sealing equipment MR-SFZ200 and MR-YF200
Solvent Retention	Less than 5mg/m2
Appearance	Within the sample of the limit
Slip Factor	CPP/CPP less than 1.0

Mat Finish Aluminum Laminated Film For Pouch Cell Case
